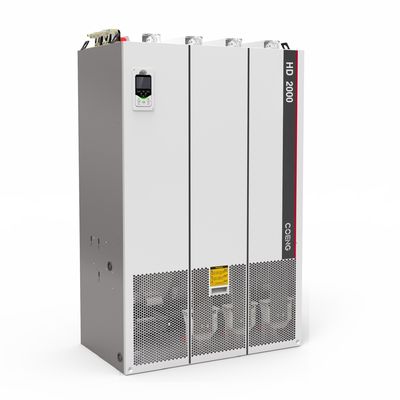

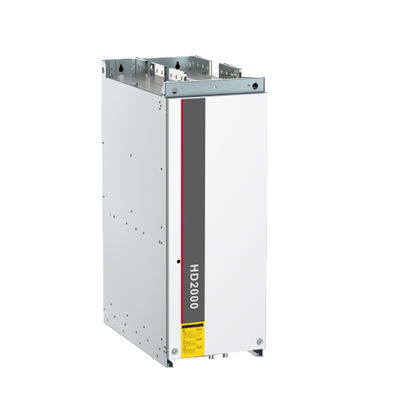

Environmentally Adaptive HD2000 Systems: Operates from -25°C to +65°C and Humidity Up to 85%
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | COENG |
| 인증 | CE |
| 모델 번호 | HD2000-C-10-2 |
| 최소 주문 수량 | 1 |
| 포장 세부 사항 | 나무 상자 |
| 배달 시간 | 0 일 |
| 지불 조건 | L/C, T/T, Western Union |
| 공급 능력 | 20000SETS/YEAR |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보

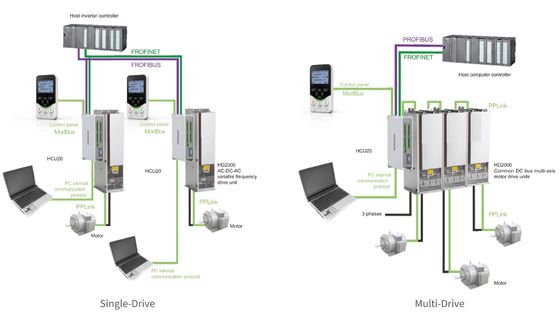

| 단일/다중 드라이브 | 2/4 사분면을 지원하는 장치/캐비닛을 갖춘 유연한 시스템 | 모듈 식 디자인 | 애플리케이션 유연성과 포괄적인 시스템 통합 지원 |
|---|---|---|---|
| 정류기 장치 | 다양한 전력 변환을 위한 기본/스마트/PWM 정류기 장치 | Max. 최대. Single Unit Power 단일 장치 전원 | 1400kW(공냉식), 2800kW(수냉식) |
| 전압 레벨 | 400V, 690V, 1140V, 1380V | Max. 최대. Parallel Operation Power 병렬 작동 전력 | 11200kW(공냉식), 22400kW(수냉식) |
| 강조하다 | VFD drive with wide temperature range,Variable frequency drive for high humidity,HD2000 VFD with extreme environment adaptability |
||
제품 설명
| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) | |
|---|---|---|
| Basic Rectifier | Input voltage | 4:380V～480V,6:500V～690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥99% Efficiency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock | |
| protection, and more. | ||
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98.5% Efficiency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more | |
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98% Efficiency (Including LCL filter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. | |
| Inversion | Rated Input voltage | 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc, |
| A:1488Vdc~2200Vdc | ||
| Output voltage | 0 ~ Rectifier AC input voltage | |
| Output frequency | 0 ~ 500Hz | |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 | |
| Speed stability | OLVC:0.2% CLVC:0.01% | |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% | |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) | |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported | |
| Torque accuracy | OLVC:5% CLVC:5% | |
| Torque response time | OLVC:5ms CLVC:5ms | |
| Speed response time | OLVC:100ms CLVC:100ms | |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s | |
| Environmental conditions | Temperature | -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies |
| Humidity | 5% ~ 95% Mon-condensing | |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m | |
| Mechanical data | Anti-vibration performance | Complies with IEC 60721-3-3:2002 |
| Protection level | IP00 / IP20 / IP40 | |
| Safety level | Complies with UL 508C-2004 | |
| Cooling method | Liquid-cooled | |
Motor Drive VFD Inverter Typical Applicantion
Common FAQ questions in different countries or regions
1. United States
Focus: Industrial Reliability, Energy Efficiency, and Compliance
-
Q: Does the HD2000 VFD meet UL safety standards for industrial use in the U.S.?
A: Yes, the HD2000 series complies with UL 508C-2004, ensuring top-tier safety and reliability for demanding American industrial environments. -
Q: How does the HD2000 help reduce operational costs in manufacturing?
A: With operating efficiency up to ≥99% in basic rectifier models, the HD2000 minimizes energy waste, leading to significant cost savings over time. -
Q: Can the drive handle sudden load spikes common in U.S. factories?
A: Absolutely. It supports 150% overload for 60 seconds and DC overload for 5 seconds, providing robust performance during peak demands. -
Q: What cooling options are available for high-temperature regions like Texas?
A: Both air-cooled and water-cooled models are offered, with operating temperatures up to +55°C (with derating), ideal for varied climates. -
Q: Is the HD2000 suitable for multi-drive systems in large plants?
A: Yes, its modular design supports complex single-drive or multi-drive setups, making it perfect for scalable American industrial applications. -
Q: How does the product ensure long-term durability?
A: With protection functions like overheating, overcurrent, and soft-start, plus anti-vibration compliance (IEC 60721-3-3), it offers exceptional longevity.
2. Germany
Focus: Precision Engineering, Environmental Standards, and High Performance
-
Q: How precise is the speed control in the HD2000 for German engineering applications?
A: With CLVC mode, speed stability is 0.01% and speed fluctuation is 0.1%, meeting the high precision required in German automation and machinery. -
Q: Does the HD2000 support torque control for sensitive processes?
A: Yes, OLVC and CLVC modes enable torque control with 5% accuracy and 5ms response time, ideal for precision-driven industries. -
Q: Is the product compliant with European environmental and safety norms?
A: While explicitly tested to international standards, it aligns with IEC anti-vibration norms and offers IP00-IP40 protection levels for safe operation. -
Q: How efficient is the PWM rectifier under full load?
A: The PWM rectifier achieves ≥98% efficiency (including LCL filter), ensuring energy savings and compliance with German efficiency directives. -
Q: Can the HD2000 operate in variable frequency ranges for specialized equipment?
A: Yes, output frequency ranges from 0 to 500Hz, supporting diverse motor types used in German manufacturing. -
Q: What makes the HD2000 ideal for harsh industrial environments?
A: With wide humidity tolerance (5%-95% non-condensing) and robust protection functions, it performs reliably in challenging conditions.
3. Japan
Focus: Compact Design, High Frequency, and Technology Integration
-
Q: Is the HD2000 available in compact sizes for space-limited Japanese facilities?
A: Yes, compact air-cooled models (5.5–160kW) and modular units allow flexible installation in tight spaces. -
Q: How does the drive support high-speed applications common in Japan?
A: With an output frequency range of 0–500Hz and CLVC starting torque of 200% at 0Hz, it excels in high-speed automation and robotics. -
Q: What protection features prevent damage in frequent start-stop cycles?
A: Soft-start protection, IGBT pass-through protection, and overload capabilities ensure smooth operation and extended equipment life. -
Q: Can the HD2000 integrate with smart factory systems?
A: Yes, the intelligent rectifier and PWM options support advanced control and monitoring, aligning with Japan’s Industry 4.0 initiatives. -
Q: How does the product perform in high-humidity coastal areas?
A: With 5%–95% non-condensing humidity tolerance, it remains reliable in humid climates like Osaka or Tokyo. -
Q: What efficiency levels can we expect for energy-conscious Japanese markets?
A: Efficiencies range from ≥98% to ≥99%, reducing operational costs and supporting sustainability goals.
