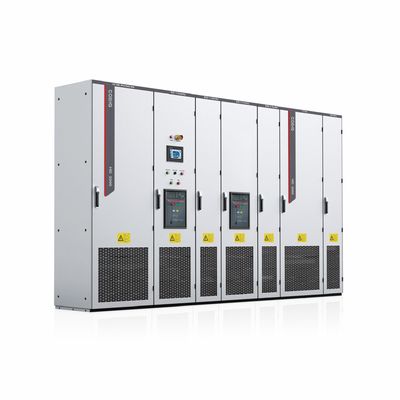

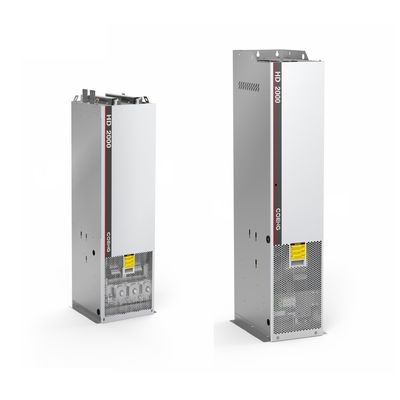

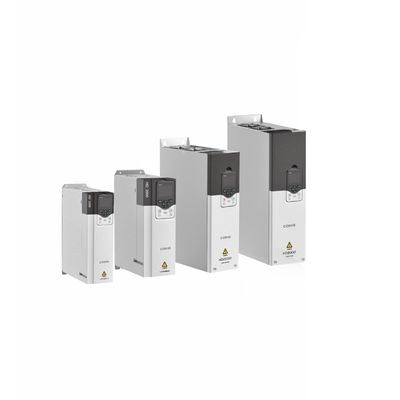

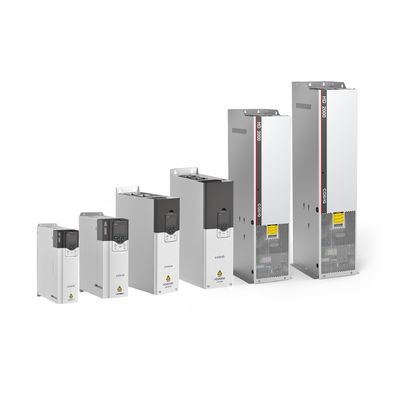

High-Efficiency HD2000 Series VFD with ≥99% Operating Efficiency for Industrial Motor Drives
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | COENG |
| 인증 | CE |
| 모델 번호 | HD2000-C-10-2 |
| 최소 주문 수량 | 1 |
| 포장 세부 사항 | 나무 상자 |
| 배달 시간 | 0 일 |
| 지불 조건 | L/C, T/T, Western Union |
| 공급 능력 | 20000SETS/YEAR |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 단일/다중 드라이브 | 2/4 사분면을 지원하는 장치/캐비닛을 갖춘 유연한 시스템 | 모듈 식 디자인 | 애플리케이션 유연성과 포괄적인 시스템 통합 지원 |
|---|---|---|---|
| 정류기 장치 | 다양한 전력 변환을 위한 기본/스마트/PWM 정류기 장치 | Max. 최대. Single Unit Power 단일 장치 전원 | 1400kW(공냉식), 2800kW(수냉식) |
| 전압 레벨 | 400V, 690V, 1140V, 1380V | Max. 최대. Parallel Operation Power 병렬 작동 전력 | 11200kW(공냉식), 22400kW(수냉식) |
| 강조하다 | High-Efficiency VFD for industrial motors,HD2000 Series Variable Frequency Drive,VFD with 99% operating efficiency |
||
제품 설명
| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) | |
| Basic Rectifier | Input voltage | 4:380V～480V,6:500V～690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥99% Efficiency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock | |
| protection, and more. | ||
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98.5% Efficiency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more | |
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98% Efficiency (Including LCL filter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. | |
| Inversion | Rated Input voltage | 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc, |
| A:1488Vdc~2200Vdc | ||
| Output voltage | 0 ~ Rectifier AC input voltage | |
| Output frequency | 0 ~ 500Hz | |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 | |
| Speed stability | OLVC:0.2% CLVC:0.01% | |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% | |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) | |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported | |
| Torque accuracy | OLVC:5% CLVC:5% | |
| Torque response time | OLVC:5ms CLVC:5ms | |
| Speed response time | OLVC:100ms CLVC:100ms | |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s | |
| Environmental conditions | Temperature | -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies |
| Humidity | 5% ~ 95% Mon-condensing | |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m | |
| Mechanical data | Anti-vibration performance | Complies with IEC 60721-3-3:2002 |
| Protection level | IP00 / IP20 / IP40 | |
| Safety level | Complies with UL 508C-2004 | |
| Cooling method | Liquid-cooled | |
Motor Drive VFD Inverter Typical Applicantion
The distinctive selling points corresponding to different countries or regions
1. United States
-
High Efficiency Compliance: With operating efficiency up to 99%, the HD2000 significantly reduces energy consumption, aligning with U.S. energy-saving initiatives and lowering operational costs.
-
Robust Protection Systems: Advanced overheating and overcurrent protection ensure minimal downtime in demanding industrial applications like manufacturing and logistics.
-
Wide Voltage Range: Supports input voltages from 380V to 690V, ideal for regions with variable grid stability.
-
UL Safety Certification: Complies with UL 508C-2004, providing confidence in product safety and reliability.
-
Flexible Cooling Options: Air-cooled and liquid-cooled models adapt to diverse environmental conditions, from humid coastal areas to arid inland zones.
2. Germany
-
Precision Engineering: Offers speed stability up to 0.01% with CLVC, meeting Germany’s high standards for precision in automation and robotics.
-
Energy-Efficient Operation: ≥98.5% efficiency reduces carbon footprint, supporting Germany’s green energy transition.
-
Modular Design: Enables seamless integration into multi-drive systems, perfect for Industry 4.0 smart factories.
-
High Altitude Performance: Operates efficiently up to 4000m with derating, suitable for industrial plants in elevated regions.
-
Comprehensive Protection: IGBT pass-through and interlock protections enhance system longevity in high-precision applications.
3. Japan
-
Compact and Space-Saving: Compact chassis types (e.g., 5.5–160kW) fit seamlessly into Japan’s limited industrial spaces.
-
High-Frequency Operation: Output frequency up to 500Hz supports high-speed manufacturing and electronics industries.
-
Reliable in Humid Conditions: 5–95% non-condensing humidity tolerance ensures performance in Japan’s humid climate.
-
Quick Torque Response: 5ms torque response time enhances control in precision-driven sectors like automotive and robotics.
-
Water-Cooled Options: Liquid-cooled models (up to 3400kW) support energy-intensive applications without overheating.
4. India
-
Voltage Fluctuation Resilience: Handles input voltage ranges from 380V to 690V, ideal for India’s unstable power grids.
-
Cost-Effective Efficiency: ≥98% efficiency reduces electricity costs for SMEs in textiles, agriculture, and manufacturing.
-
Dust and Moisture Resistance: IP40 protection level suits India’s dusty and humid industrial environments.
-
Easy Maintenance: Simple modular units allow quick repairs, minimizing downtime in remote areas.
-
High Overload Capacity: 150% overload for 60 seconds supports sudden load spikes common in Indian industries.
5. Brazil
-
Broad Temperature Tolerance: Operates from -15°C to +55°C, adapting to Brazil’s diverse climates from Amazon heat to southern chills.
-
Multi-Drive Capability: Supports complex multi-drive systems for Brazil’s growing mining and sugarcane processing sectors.
-
Energy Factor Adjustment: Adjustable power factor (factory-set to 1) optimizes energy use under Brazil’s strict regulatory norms.
-
Vibration Resistance: Complies with IEC 60721-3-3:2002, ensuring durability in vibration-prone applications like pulp and paper mills.
-
Localized Cooling Solutions: Air-cooled models (5.5–560kW) are ideal for facilities without advanced cooling infrastructure.
