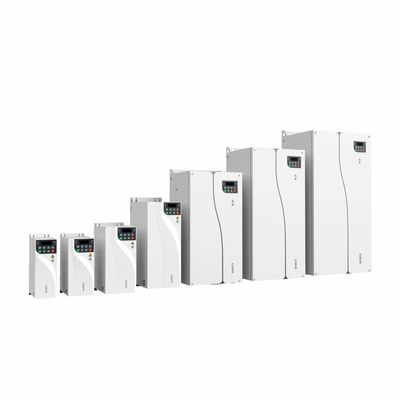

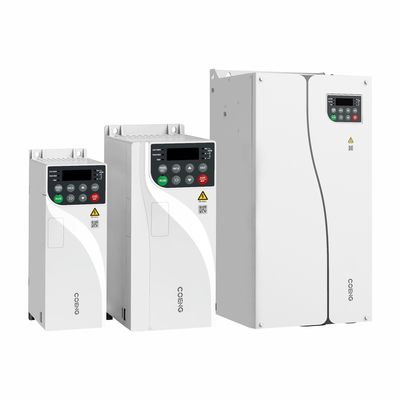

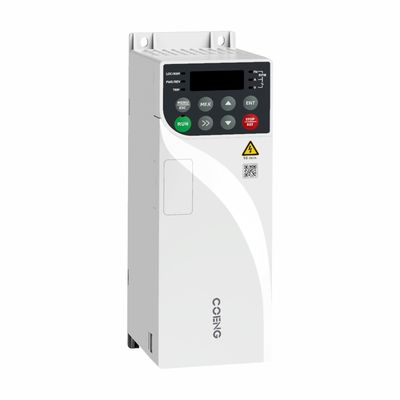

High Torque Performance: 200% Starting Torque at 0Hz for Demanding Loads
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | COENG |
| 인증 | CE |
| 모델 번호 | HV350 |
| 문서 | HV350.xlsx |
| 최소 주문 수량 | 1 |
| 포장 세부 사항 | 통, 합판 상자 |
| 배달 시간 | 10-30 작업일 |
| 지불 조건 | L/C, T/T, Western Union |
| 공급 능력 | 20000SETS/YEAR |
무료샘플과 쿠폰을 위해 나와 연락하세요.
WhatsApp:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 입력 전압 | 입력 전압: 380V (-15%) ~ 480V (+10%) | 입력 전원 주파수 | 50Hz/60Hz ± 5% |
|---|---|---|---|
| 출력 전압 | 0V~입력전압 | 출력 주파수 | 0～600Hz |
| 마스터 컨트롤 모터 유형 | 비동기식 모터 | 마스터 제어 속도 범위 | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC |
| 마스터 제어 모드 | V/F, OLVC ((오픈 루프 벡터 제어), CLVC ((폐기된 루프 벡터 제어) | ||
| 강조하다 | high torque vector frequency inverter,200% starting torque inverter,vector inverter for demanding loads |
||
제품 설명
| Item | Specification Description and Technical Data | |
| Power input/output | Input voltage | Input voltage: 380V (-15%) to 480V (+10%) Phase: Three-phase |
| Input power frequency | 50Hz/60Hz ±5% | |
| Input voltage imbalance | ≤3% | |
| Output voltage | 0V~Input voltage | |
| Output frequency | 0～600Hz | |
| Master control performance | Motor type | Asynchronous motor |
| Control mode | V/F, OLVC(Open-loop Vector Control) | |
| Speed range | 1:100 V/F; 1:200 OLVC | |
| Starting torque | OLVC: 150%(0.25Hz) | |
| Torque precision | ±5% (OLVC, above 5Hz) | |
| Torque ripple | ≤±5%, in Vector control mode | |
| Speed stability | OLVC, 0.2% | |
| Torque response | ≤5ms, in Vector control mode | |
| Acceleration/deceleration time | 0.0s~3200.0s; 0.0min~3200.0min | |
| Torque boost | 0.0%~30.0% | |
| Overload capacity | G type: 150% 1min/5min; 180%10s/5min; P type: 110% 1min/5min; 150% 10s/5min | |
| V/F curve | Straight-line type, multi-point type, V/F Half separation mode, V/F complete separation mode | |
| Input frequency resolution | Digital setting: 0.01Hz, Analog setting: maximum frequency *0.025% | |
| Main functions | Acceleration/deceleration curve | Straight line and S-curve |
| Simple PLC, Multi-speed control | 16 speed segments supported through control terminals | |
| Automatic voltage regulation (AVR) | Automatically keeps the output voltage constant when grid voltage varies within a certain range | |
| Fixed length control | Control with given length | |
| Built-in PID | Easily forms a closed-loop control system | |
| Multi-motor switching | Switchover between two groups of motor parameters to control the two motors | |
| Virtual I/O | 8 groups of virtual VDI/VDO, 3 groups of AI as DI, enabling simple logic control | |
| Overvoltage/Overcurrent stall control | Automatic current and voltage limitation during operation preventing the inverter from tripping due to frequent overcurrent or overvoltage | |
| Restart after power failure | After power failure and restoration, the inverter waits for a set time before automatically running | |
| Quick current limiting | Avoids frequent overcurrent faults in the inverter | |
| Power input/output | Frequency setting method | Keypad; terminal UP/DOWN; multi-reference; pulse reference; communication |
| Analog input terminals | AI1; AI2: 0V~10V/ 0 (4)mA~20mA | |
| Digital input terminals | DI1-DI5, 5 programmable digital input terminals with opto-isolation, compatible with both sinking/sourcing inputs. DI5 supports high-speed pulse input with a maximum input frequency of 100kHz. |
|
| Digital output terminals | Open-collector output; output voltage range: 0V~24V; current load capacity: 50mA. DO1 supports high-speed pulse output with a maximum output frequency of 100kHz. |
|
| Analog output terminals | 1-channel 0V ~ 10V/0(4)mA ~ 20mA | |
| Relay output | 1-channel Form C contact, NO+NC | |
| Communication | Communication protocols | Modbus RTU (standard configuration); Profibus-DP; Profinet IO; CANopen; Modbus TCP/IP; Ethercat; EtherNet/IP (optional configuration) |
| Ambient requirements | Altitude | ≤1000m: no need for derating 1000~3000m: current derating by 1% per 100m increased |
| Ambient temperature | -25℃～+40℃ (Running with derating allowed between 40~55) | |
| Humidity | 15% ~ 95%, No condensation | |
| Vibration | 3M3, IEC60721-3-3 | |
| Storage temperature | −40°C~+70°C | |
| Installation place | Indoor, without direct sunlight, free from flammable, corrosive gases, liquids, and conductive particles. | |
| Optional accessories | Communication expansion card, I/O terminal expansion cards | |
| Protections | Protection against short circuit , overcurrent, overload, overvoltage, undervoltage, phase loss, overtemperature, external faults, etc. | |
| Installation method | Installed in a cabinet | |
| Protection rating | IP20 | |
| Cooling method | Air cooling | |
-
Russia
Designed for extreme temperatures, the inverter maintains performance from -25°C to +55°C. Its robust construction and anti-condensation features suit Russia’s heavy machinery and oil/gas applications. -
Spain
Improve renewable energy integration with the inverter’s grid compatibility and frequency stability. The built-in PID and communication options align with Spain’s focus on solar and wind power systems. -
Turkey
Address frequent power variations with the inverter’s automatic voltage regulation and restart功能. Its multi-language keypad support facilitates operation in Turkey’s diverse industrial landscape. -
Saudi Arabia
Excel in high-temperature desert environments with enhanced cooling and thermal protection. The inverter’s fixed-length control and relay outputs are ideal for Saudi Arabia’s construction and utilities. -
South Africa
Ensure operational continuity in areas with unstable grids using the inverter’s wide input voltage tolerance and surge protection. The simple multi-speed setup benefits South Africa’s mining and agriculture. -
Indonesia
Resist humid tropical conditions with 95% humidity tolerance and no-condensation design. The inverter’s PID and motor switching functions optimize Indonesia’s palm oil and processing plants.
